580µmol/s 164ft CMH Grow Lights Full Spectrum 630W
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GrowBetter, OEM |
| Certification: | CE ROHS FCC |
| Model Number: | Dual 315w |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam + Cartons |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, L/C, TransferWise |
| Supply Ability: | 100,000 set per month |
|
Detail Information |
|||
| Item Name: | 630W Dual CMH Complete Fixture | Item Name 2: | 630W Dual Full Spectrum |
|---|---|---|---|
| Item Name 3: | Complete 630W Dual Spectrum Fixture | Item Name 4: | 630W Ceramic Metal Halide Fixture |
| Light Source: | 315w Ceramic Metal Halide X 2 | Power Supply: | Dimmable Digital Ballast |
| Reflector: | Glass With Optical Design | Comes With: | Power Line, Install Hanger |
| High Light: | 580µmol/s CMH Grow Lights,164ft CMH Grow Lights,630W Full Spectrum Grow Light |
||
Product Description

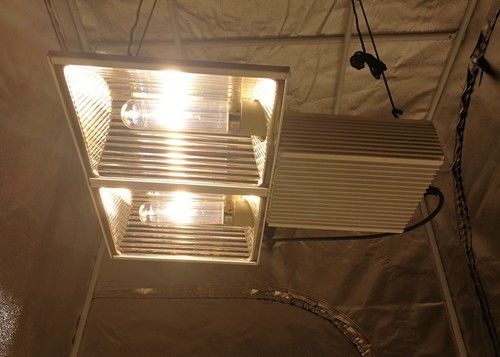

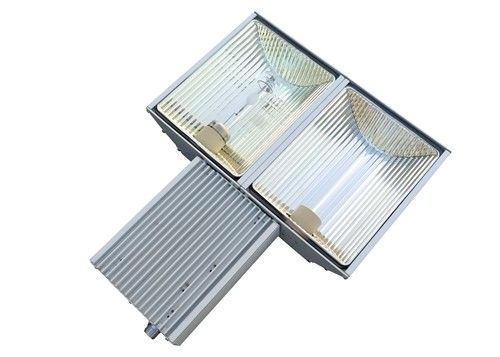

Full Spectrum Grow Light System 630W Dual CMH Complete Fixture
(include 2 x 315w Ceramic Metal Halide bulb)
630W Dual CMH Complete Fixture, 630W Dual Full Spectrum
Complete 630W Dual Spectrum Fixture, 630W Ceramic Metal Halide Fixture
The world’s first glass optical design grow lights!
CMH 630w Grow Light Dual Fixtures including:
• 2 x 315w CMH grow light bulbs
• 2 x high reflective glass reflectors
• 1 x Low frequency 6-phase dimmable digital ballasts
• 1 x 2.0 meters power cord with plug
• 1 x light installation hanger
Key Features and Benefits
• High reflective reflector with inner silver coating technology, more grow lights towards crops;
• Top unique optical design, effective and uniform light distribution;
• Soft start low frequency square wave digital ballasts, silent and stable quality;
• High output 315w bulbs;
• Broad spectrum light fixture, glass reflector without oxidation problem;
• 50% yields increase, 30% less power, 30% growth speed up.
Specification
| Dimension | 489 x 414 x 90 mm |
| Connector |
IEC C14, power cable 2 meters with plug; 0.45M using, 180℃ heaesistant and 5 KV approved lamp cord |
| Reflector | Borosilicate glass with Inner silver coating surface |
| Packing Size | 59 x 50 x 18 cm |
| Gross Weight | 9.0 KG |
Average PPFD (µmol m-2 s-1) Comparison Chart
| Install Height | Radiation Area | GrowBetter 630w B256 2x315w CMH |
Another Brand's 630w 2x315w CMH |
Another Brand's 945w 3x315w MH |
| 1 .0 m | 1.2m*1.2m | 322.21 | 207.02 | 282.21 |
| 1.5 m | 1.8m*1.8m | 152.11 | 97.73 | 133.23 |
| 2.0 m | 2.4m*2.4m | 85.08 | 54.67 | 74.52 |
| 2.5 m | 3.0m*3.0m | 56.31 | 36.18 | 49.32 |
| 3.0 m | 3.6m*3.6m | 39.06 | 25.09 | 34.21 |
| 4.0 m | 4.8m*4.8m | 22.54 | 14.48 | 19.74 |
♦ Light Source: 315W PGZX18
| Description | Initial Lumens |
CCT (K) |
CRI (Ra) |
PPF (µmol/s) |
Lamp Nominal Wattage (w) |
Lamp Nominal Voltage (v) |
Lamp Nominal Current (A) |
| Single Ended CMH Lamp 315 Watt 930 | 37000 | 3100 | 90 | 580 | 315 | 105 | 3 |
| Single Ended CMH Lamp 315 Watt 942 | 32500 | 4200 | 95 | 530 | 315 | 105 | 3 |
♦ Power Supply – Dimmable Digital Ballast
• Advanced Low Frequency Square Wave Technology;
• Lighting distance from ballast to lamp is up to 50m (164 ft)
• Dimmable Ballast include 315W 378W 441W 504W 567W 630W
• All of ballasts have passed QA test before sending out to customers
|
Item |
Digital Ballast for CMH 630w |
| Input Voltage | AC 165~270V (Rated Voltage220V) |
| Input Frequency | 50/60 Hz |
| Power Factor | >0.98 |
| Harmonic Distortion | ≤ 10% |
| Current Crest Ratio | ≤ 1.7 |
| Total Power | ≥ 94% (220Vac) |
| Input Power | 680w |
| Output Frequency | 100 Hz |
| 6-phase Dimming Function | output range 50% - 60% - 70% - 80%-90% -100% |
| Insulation Resistance | Input ＝＝> Case ≥ 50MΩ |
| Voltage Resistance Test | Input ＝＝> Case (AC1500V < 50mA) |
| Operating Temperature | -25℃～ 40℃ |
Application
Indoor gardening plant growing, indoor hydroponics, commercial greenhouses, grow tents……
