GrowBetter Ceramic Metal Halide Cmh, 315w Cmh Grow Light Hydroponic Lighting
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GrowBetter |
| Certification: | CE ROHS FCC |
| Model Number: | SE-CMH315A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Package + Pallet Package |
| Delivery Time: | 5-8 work days for S/O, 10-45 work days for B/O |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10,000pcs per month |
|
Detail Information |
|||
| Power: | 315W | Lamp: | 315W Ceramic Metal Halide Lamp |
|---|---|---|---|
| Ballast: | Low Frequency Digital Ballast | Item: | CMH Grow Light Fixture |
| Name: | CMH 315 Grow Light System | ||
| High Light: | 315W CMH Grow Light Kit,CDM CMH Grow Light Kit,240V Ceramic Metal Halide Grow Light |
||
Product Description

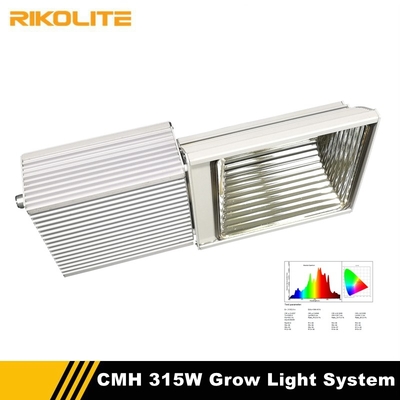

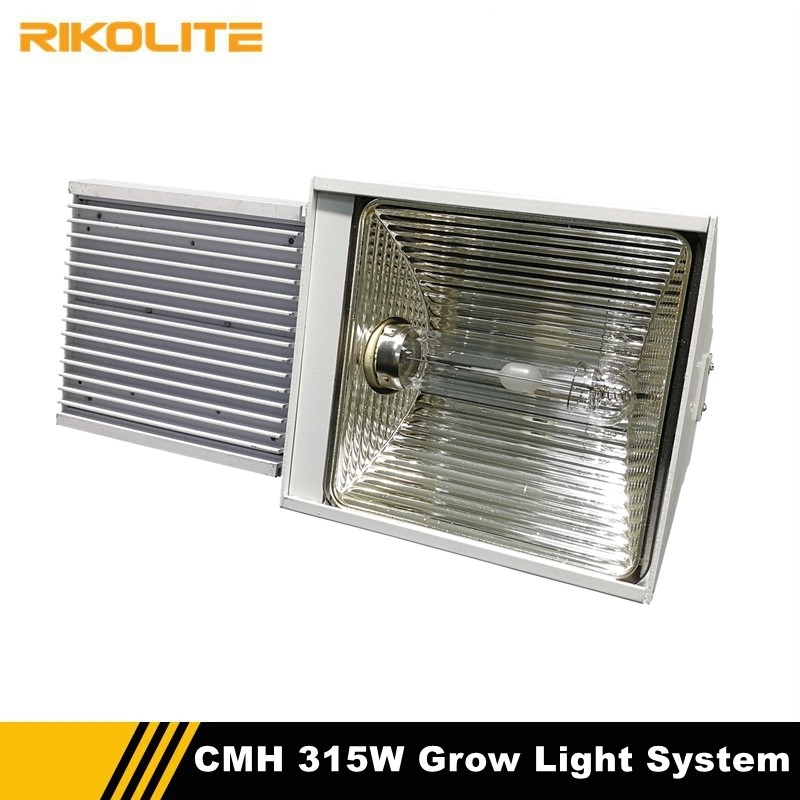

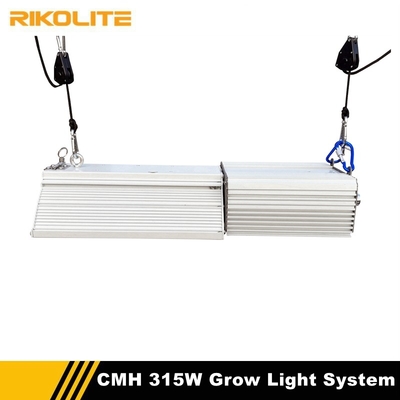

GrowBetter Ceramic Metal Halide Cmh, 315w Cmh Grow Light Hydroponic Lighting
Ceramic Metal Halide grow lights produce very high quality light for the plants. Ceramic metal halide (CMH) grow lights are one of the best types of high-intensity discharge (HID) lights available. They are perfect for any growing operation, making them a popular choice among indoor growers. Ceramic Metal Halide or Light Emitting Ceramic grow lights. CMH grow lights are hands down the best HID grow lamp technology available on the market right now. they have the best PAR spectrum of any HID lamp, the slowest degradation rate, and they’re also at least 10% more efficient than other HID lamps.
CMH (Ceramic Metal Halide) Grow Light Kits including:
• 1 x 315w PGZ18 Ceramic Metal Halide Grow Light Bulb;
• 1 x 315w Low Frequency Dimmable Digital Ballast;
• 1 x 2.0 meters power cord with plug
• 1 x light installation hanger
GrowBetter Grow Lights Contribute To Faster Plant Growth & Higher Yields.
315w cmh grow light Key Features and Benefits
• High reflective reflector with inner silver coating technology, more grow lights towards crops;
• Top unique optical design, effective and uniform light distribution;
• Soft start low frequency square wave digital ballast, silent and stable quality;
• 6 phase dimmable output 50%-60%-70%-80%-90%-100%
• Broad full spectrum light fixture, glass reflector without oxidation problem;
• 50% yields increase, 30% less power, 30% growth speed up.
315W CDL/CMH grow light has a UVA rich tailored spectrum which provides higher yield and potency.
Specification
| Dimension |
459*207*90mm
|
| Connector | IEC C14, power cable 2m with 230V |
| Operating Temperature | -25℃~40℃ |
| Reflector | Borosilicate glass, silver coated surface |
| Packing Size | 57 x 30 x 18 CM; 1 unit /carton |
| Gross Weight/ Volume Weight | 7.0 kg / 6.5 kg |
GrowBetter CMH 315W System Average PPFD (µmol m-2 s-1)
|
Install Height |
Radiation Area |
GrowBetter 315w PGZ18 1 x 315w |
|
| 1 .0 m | 1.2m*1.2m | 163.2 | |
| 1.5 m | 1.8m*1.8m | 77.09 | |
| 2.0 m | 2.4m*2.4m | 43.12 | |
| 2.5 m | 3.0m*3.0m | 28.53 | |
| 3.0 m | 3.6m*3.6m | 19.72 | |
| 4.0 m | 4.8m*4.8m | 11.37 |
Light Source: 315W PGZX18
| Description | Initial Lumens |
CCT (K) |
CRI (Ra) |
PPF (µmol/s) |
Lamp Nominal Wattage (w) |
Lamp Nominal Voltage (v) |
Lamp Nominal Current (A) |
| Single Ended CMH Lamp 315 Watt 930 | 37000 | 3100 | 90 | 580 | 315 | 105 | 3 |
| Single Ended CMH Lamp 315 Watt 942 | 32500 | 4200 | 95 | 530 | 315 | 105 | 3 |
Technical Parameters
| Digital Ballast 315W | |
| Model | H315DP-A |
| Dimension | 196 x 77 x 90 mm (7.7” x 3” x 3.5”) |
| Input Voltage | AC 165~270V (Rated Voltage220V) |
| Input Frequency | 50/60 Hz |
| Power Factor | >0.98 |
| Harmonic Distortion | ≤ 10% |
| Current Crest Ratio | ≤ 1.7 |
| Total Power | ≥ 94% (220Vac) |
| Input Power | ≤ 334w |
| Output Frequency | 100 Hz |
| 6-phase Dimming Function | output range 50% - 60% - 70% - 80%-90% -100% |
| Lamp Connector |
IEC C14, power cable 2 meters with plug 0.45M, 180℃ heats resistant and 5 KV approved lamp cord |
| Insulation Resistance | Input ＝＝> Case ≥ 50MΩ |
| Voltage Resistance Test | Input ＝＝> Case (AC1500V < 50mA) |
| Operating Temperature | -25℃～ 40℃ |
Application
Indoor gardening plant growing, indoor hydroponics, commercial greenhouses, Grow Tents
The Advantages of CMH Grow Lights
- Balanced spectrum
- Better PAR efficiency than MH or HPS
- High CRI for visual appeal
- UV supplementation
- Lower heat output watt per watt
- Last longer than other HID grow lights
