Double Ended 110V Lighting Fixture Accessories 8m Height 100W High Pressure Sodium
Product Details:
| Place of Origin: | China |
| Brand Name: | GrowBetter, 1/3, OEM |
| Certification: | CE ROHS |
| Model Number: | SLF-R-HS100-SE3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Inner Box, Export Cartons, OEM |
| Delivery Time: | 5-7 days for S/O, 15-35 days for PO |
| Payment Terms: | 30% deposit, 70% before delivery |
| Supply Ability: | 10000 set per month |
|
Detail Information |
|||
| Lamp Power: | 100W | Lamp Base: | Double Ended With Wires R7XS |
|---|---|---|---|
| Working Voltage: | 110 V, 220 V | Color Temperature: | 2000 K |
| Light Maintenance: | 95% | Power Supply: | Electronic Ballast |
| Energy Saving: | 50% Than Normal Hid Street Light | Body Color: | Blue, Grey, Customized |
| High Light: | Double Ended 110V Lighting Fixture Accessories,8m Height Lighting Fixture Accessories,100W high pressure sodium lamp |
||
Product Description

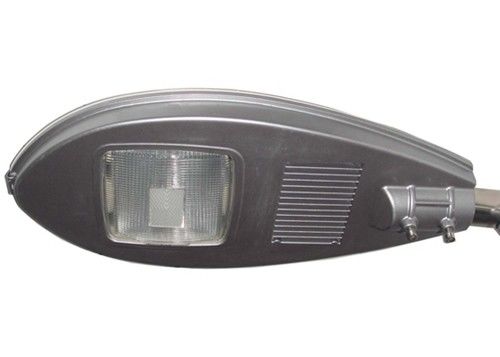

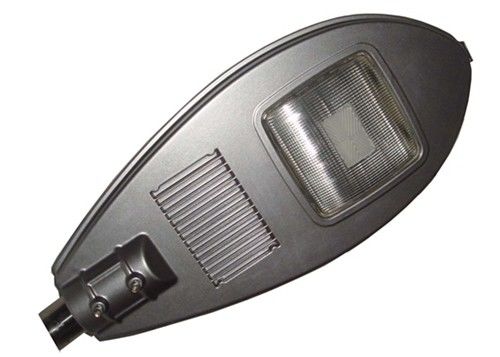

High Efficient Energy Saving HID Street Lights Flying Fish 100W Street Light with high pressure sodium lamp
Specification
| Product Name: | Flyfish 100W HPS Street Light |
| Model Number: | SLF-R-HS100-SE3 |
| Lamp Power: | 100W |
| Total Power Consumption: | 112W |
| Input Voltage: | AC 165-265V / AC90-140V |
| Input Frequency: | 50Hz / 60Hz |
| Current: | 0.52 A |
| Power Factor: | ≥ 0.98 |
| Color Temperature: | 2000 K |
| Color Rendering Index: | ≥ 30Ra |
| Luminous Flux: | 96,000 lm |
| Luminous Efficiency: | ≥ 80 lm/w |
| Lumen Maintenance: | 95% (10,000 hrs) |
| Average Life: | 24,000 hrs |
| Ballast Type: | Electronic Ballast |
| Lighting Bulbs & Tube: | Double-Ended high efficiency HPS |
| Lampshade Material: | Die Casting Aluminum |
| Gasket: | Silicone Rubber |
| Lamp Cover / Diffuser: | Heat-resistant tempered glass |
| Reflector: | High reflective glass reflector |
| Lamp Base: | R7S |
| Arm Diameter: | 60 mm |
| Protection: | IP65 |
| Popular Surface Color: | Blue, Silver Grey, OEM |
| Install Height | 6 - 8 meters |
| Electrical class: | Class II |
| Ambient Temperature: | -35℃~ 50℃ |
| Ambient Humidity: | 10% ~ 95% |
| Certification | CQC, CE, ROHS |
| Application: | Outdoor Street Lighting, Highway |
| Energy Saving Comparison: | Up to 50% power saving, 10% more illuminance compared to traditional HPS 150W street light; |
| Dimensions (L x W x H): | 580 x 275 x 160 mm |
| Net Weight: | 4.6 kg |
| Packaging Carton Size: | 65 x 32 x 23 cm |
| Packaging Qty. per carton: | 1 piece per carton |
| Packaging Gross Weight: | 5.7 kg |
| Packaging CBM: | 0.048 |
Key Features
1. Obvious energy saving effect, up to 50% electricity saving compared with the ordinary street lamp;
2. Convenient and quick installation -- no need to modify the line, and can be replaced directly with the original street lamp; The standard horizontal arm of the 60mm standard is installed directly;
3. Long service life -- over 24,000 hours;
4. Safe and convenient operation, anti-corrosion, shockproof, waterproof, lightning protection, dust proof and other protection functions.
Advantages
- Up to 50% energy saving compared to normal hid street lights.
- Unique constant current constant voltage technology: when the voltage input of 165v-265v, the working power and brightness are basically unchanged; It avoids the premature aging caused by the overload of the light source due to the unstable voltage, which is to extend the service life of the light source.
- the lamp light source service lifetime more than 24,000 hours, 2- 3 times of normal sodium lamp life, save the light bulb cost and maintenance cost adequately;
- High light utilization: unique optical design, the luminaire efficiency can reach more than 85%;
- Wide range of rectangular irradiation street lamps, evenly light distribution;
- anti-glare: the glass mask is used to project the reflected light evenly and evenly into the effective region, with the anti-glare effect.
- High power factor > 0.98, greatly reduces line loss.
- Exquisite and beautiful design, the shell is made of die cast aluminum, the product is light weight and easy to install and maintain; meanwhile, mini size effectively reducing wind resistance;
- Solar Power Version Available (according to customer requirements)
- Intelligent Centralized Control (according to customer requirements)
Main Application
City roads, sidewalks, plazas, schools, parks, gardens, residential areas, plant and other places of outdoor lighting is required.
