1000W 100KHz 0 10V Controller HPS MH Low Frequecny Square Wave Electronic Ballast
Product Details:
| Place of Origin: | China |
| Brand Name: | GrowBetter, 1/3, OEM |
| Certification: | CE ROHS FCC |
| Model Number: | BRI-H1000F-150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Inner Box, Export Cartons, OEM |
| Delivery Time: | 5-7 days for S/O, 15-35 days for PO |
| Payment Terms: | 30% deposit, 70% before delivery |
| Supply Ability: | 10000 set per month |
|
Detail Information |
|||
| Material: | Aluminum | Style: | Electronic |
|---|---|---|---|
| Usage: | HID, High Intensity Discharge | Matched Tube: | HPS, MH |
| THD: | ＜10% | PFC: | ＞0.95 |
| High Light: | 1000W 0 10V Controller,100KHz 0 10V Controller,HPS low frequency electronic ballast |
||
Product Description

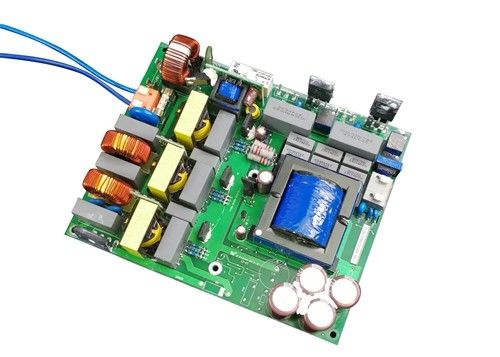

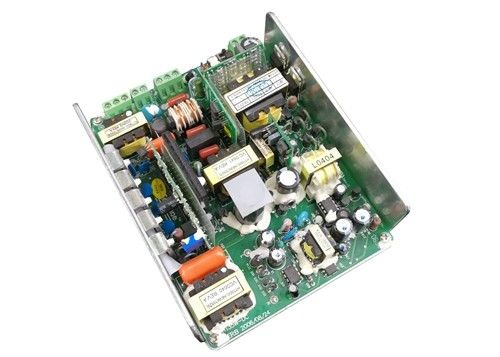

1000W HID Digital Ballast for HPS MH low frequecny square wave electronic ballast
Advantages and characteristics
1, energy saving
The ballast itself consumes less power, saves 40% more power than an inductive ballast, increases light efficiency by 12%, and has a ballast power factor greater than 0.96.
2, constant power, extend the life of the light source
The light source starts quickly without flicker, so that the color temperature and brightness of the light source do not change with voltage fluctuations. The constant low-frequency operating current output will not produce acoustic resonance phenomenon, reduce the damage to the lamp, and extend the life of the light source by 30%.
3, environmental protection, low noise and no pollution
Low harmonic content, no interference with the power grid and other equipment, low noise and no radiation.
4, to achieve intelligent control
With over-voltage, over-current, open circuit, short circuit, temperature and many other protection features, fire safety is guaranteed. Dimmable and smart control.
5, for a wide range of ambient temperatures
Use a wide range of ambient temperature, low temperature rise, -25 C ~ +55 C
| Specification | Model | BRI-H1000F-150 |
| Material | Aluminum | |
| Dimension | 150*120mm | |
| Net Weight | 950g | |
| Style | Electronic | |
| Usage | HID, High Intensity Discharge | |
| Matched Bulb | HPS, MH | |
| Technical Parameters | Input Voltage | 165~265VAC |
| Input Current | 6.44A~4.00A | |
| Input Power | 1030W±20 | |
| Input Frequency | 50Hz～60Hz | |
| Surge Current | ＜20A | |
| Power Factor | ＞0.95 | |
| THD | ＜10% | |
| Input Insurance | 250V/10A | |
| Ouput Power | 1000W±20 | |
| Lamp Voltage | 75V～150V | |
| Output Frequency | 100KHz±20KHz | |
| Crest Factor | ＜1.7 | |
| Open Circuit Protection | ＞300V | |
| Ignition [striking] voltage | ＜5KV | |
| Short-circuit protection | YES | |
| Open-circuit protection | YES | |
| Ignition failure protection | YES | |
| Thermal protection | YES | |
| Lamp failure protection | YES | |
| Low-voltage protection | YES | |
| Ballast to Lamp distance | <5m | |
| Working temperature | -25℃～+50℃ | |
| Min starting temperature | -25℃ | |
| EMC | EN55015,FCC18C | |
| Support dimming | YES | |
| Dimming setting | 2-phase time control 3-phase time control |
|
| Packaging | Inner Box Size | |
| Carton Package | 39*27*29.5 cm | |
| Package Qty. | ||
| Package G.W. | ||
| Package CBM |
