350nm Spectral Plant Analyzer , 0.5nm Wavelength PPFD Pocket Spectrum Analyzer
Product Details:
| Place of Origin: | China |
| Brand Name: | Plant Lighting Test Equipment |
| Certification: | CE RoHS |
| Model Number: | PLA30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10,000pcs per month |
|
Detail Information |
|||
| Spectral Range: | 350nm-800nm | Connection Interface: | Type C |
|---|---|---|---|
| Display Size: | 5" LCD | Power Supply Mode: | Rechargeable Lithium-ion Battery |
| Function: | Accurate Measurement And Analysis Of Plant Lighting | Wavelength Accuracy: | 0.5nm |
| Highlight: | 350nm Spectral Plant Analyzer,0.5nm Wavelength Pocket Spectrum Analyzer,PPFD Pocket Spectrum Analyzer |
||
Product Description

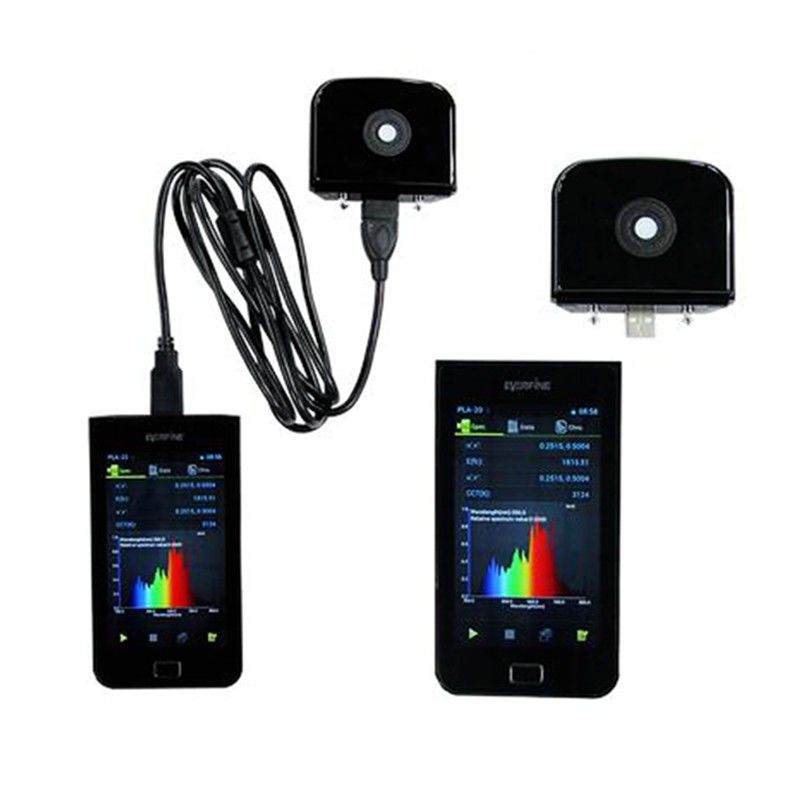

Smart Plant Lighting Analyzer Accurate Measurement And Analysis Of Plant Lighting
Smart Plant Lighting Analyzer Spectrum Test PPFD Test Equipment
- Specially designed for plant lighting field which integrates spectrum, illuminance, colorimetric and plant photometric measurement functions together.
- With the international patented technologies, it has non-V () mismatch error and realize wide dynamic range with excellent linearity, and extremely high accuracy.
- Can be disconnected with main board and communication by Bluetooth, which is flexible to measure on site according to real application.
- 5 Inch touchable display, built-in SD memory card and powerful smart operation system, shown on-real time.
- Suitable for the on-site measurements of plant lighting.
- Spectra range 350-800nm
Specification
| Spectral Range | 350nm-800nm |
| Wavelength accuracy | 0.5nm |
| Illuminance test range | 1lx～200klx |
| Power supply mode | Battery: Lithium-ion rechargeable |
| Storage | 6G(built-in) |
| Communication |
Main unit to detector:USB or BLUETOOTH Main unit to PC:USB/WIFI |
| Connection Interface | Type C |
| Display size | 5" LCD |
This Plant lighting analyzer is a professional measuring equipment specially designed for accurate measurement and analysis of plant lighting. It integrates high-end intelligent configuration, one-key operation, one-step measurement and analysis, real-time data reading, widely used in plant grow lighting analysis, monitoring and research.
Parameters
Relative spectral power distribution P(λ)
Illuminance(E)
Photosynthetic photon flux density (PPFD)
Chlorophyll A weighted irradiance(Ech-A)
Chlorophyll B weighted Irradiance(Ech-B)
Blue-purple irradiance(EB )
Yellow-Green irradiance(EY)
Red-Orange irradiance(ER )
Red-Blue irradiance ratio(Erb_ratio)
