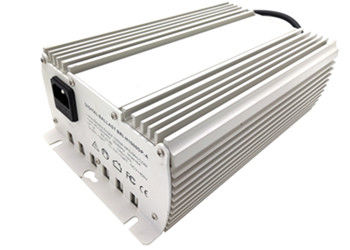

6.56A 1000w Grow Light Ballast Ceramic Metal Halide Lamp Digital 165VAC
Product Details:
| Place of Origin: | China |
| Brand Name: | GrowBetter, 1/3, OEM |
| Certification: | CE ROHS FCC |
| Model Number: | BRI-H1000DP-A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Inner Box, Export Cartons, OEM |
| Delivery Time: | 5-7 days for S/O, 15-35 days for PO |
| Payment Terms: | 30% deposit, 70% before delivery |
| Supply Ability: | 10000 set per month |
|
Detail Information |
|||
| Material: | Aluminum | Input Voltage: | 165~265VAC |
|---|---|---|---|
| Power Factor: | ＞0.95 | THD: | < 10% |
| Dimmable: | 6 Phase Manual Dim | Matched Tube: | HID, HPS, MH, CMH, CDM, XED |
| High Light: | 6.56A Grow Light Ballast,1000w Grow Light Ballast,165VAC metal halide electronic ballast |
||
Product Description
Grow Light Ballast for Ceramic metal halide lamp 1000w electronic digital ballast for grow lights
Run 1000W hps Lamp.
Low frequency
High power factor PF>0.98
Low harmonic General harmonic THD≤ 10%
High light efficiency and energy saving.
Low power consumption
More lumens: 20-30% more lumens than magnetic ballasts
Constant output of power and light when voltage varies between -15%~15% of rating voltage
Open circuit and short circuit protection functions available.
Ignition failure protection
Overheat protection
Easy installation Easy to hang the lamp, no need any external starter and compensation capacitor.
Completely silent: no more humming and buzzing.
Constant output of power when voltage fluctuate with no flickering
No fans inside, water resistance and maintenance free operation.
Our Low Frequency Ballast Key Features & Benefits:
1. Low frequency square wave technology with soft start, constant power, protect and extend lamp lifetime.

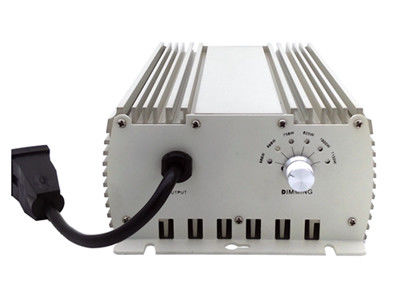

2. 6 phase Dimming Function
3. High efficient and every saving
4. Run all types of HID Grow Light bulb including HPS, MH, CDM, XED ETC.
(High-pressure sodium (HPS), Metal halide lamp (MH), Ceramic discharge metal halide (CDM) and Xenon Lamp)
5. Long lighting distance up to 50 meters (164 feet), convenient for centralized control.
Normal ballasts lighting distance no more than 15 meters (50 feet)
6. 630W, 1000W, 1500W, 1800W, 2000W are available.
7. Multiple Protection OVP, OTP, SCP, OCP
| Model | BRI-H1000DP-A |
| Material | Aluminum |
| Dimension | 398*180*98mm |
| Net Weight | 3980g |
| Matched Bulb | HPS/MH/CDM/XED |
| Input Voltage | 165~265VAC |
| Input Current | 6.56A~4.08A |
| Input Power | 1050W±20 |
| Input Frequency | 50Hz～60Hz |
| Surge Current | ＜40A |
| Power Factor | ＞0.95 |
| THD | ＜10% |
| Input Insurance | 250V/10A |
| Ouput Power | 1000W±20 |
| Lamp Voltage | 120V～350V |
| Output Frequency | 100Hz±10Hz |
| Crest Factor | ＜1.7 |
| Open Circuit Protection | ＞300V |
| Ignition [striking] voltage | ＜5KV |
| Short-circuit protection | YES |
| Open-circuit protection | YES |
| Ignition failure protection | YES |
| Thermal protection | YES |
| Lamp failure protection | YES |
| Low-voltage protection | YES |
| Ballast to Lamp distance | <50m |
| Working temperature | -25℃～+50℃ |
| Min starting temperature | -25℃ |
| EMC | EN55015,FCC18C |
| Support dimming | YES |
| Dimming setting | 6 phase manual dim |
| Inner Box Package | 420*245*125mm |
| Outer Carton Package | 842*492*252mm |
| Package Qty. | 4 |
