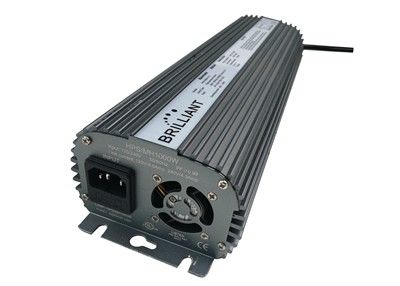

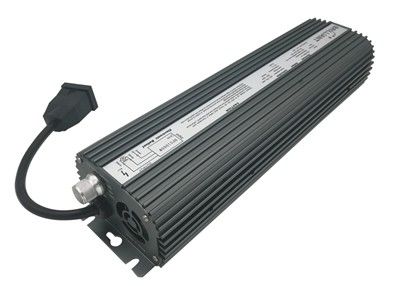

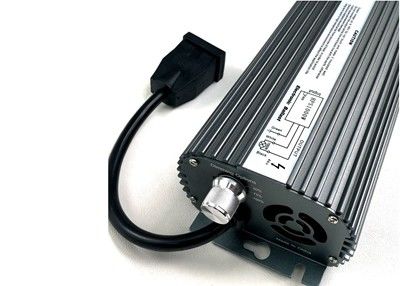

High Intensity Discharge MH Grow Light Ballast HID 1000W Plant Lighting
Product Details:
| Place of Origin: | China |
| Brand Name: | GrowBetter, 1/3, OEM |
| Certification: | CE ROHS FCC |
| Model Number: | HPS/MH 1000W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Inner Box, Export Cartons, OEM |
| Delivery Time: | 5-7 days for S/O, 15-35 days for PO |
| Payment Terms: | 30% deposit, 70% before delivery |
| Supply Ability: | 10000 set per month |
|
Detail Information |
|||
| Style: | Electronic | Matched Tube: | HPS, MH |
|---|---|---|---|
| Material: | Aluminum | Color: | Black, Grey, Blue, Purple, Customized |
| Usage: | HID, High Intensity Discharge | Application: | Plant Lighting |
| Input Voltage: | AC 95-265 V | Power Factor: | > 0.95 |
| High Light: | High Intensity Discharge Grow Light Ballast,MH Grow Light Ballast,1000W hid electronic ballast |
||
Product Description
High Efficient Grow Light Ballast High Frequency Digital Electronic Ballast 1000W Dimmable
1. Strikes Both High-Pressure Sodium Lamp (HPS) and Metal Halide Lamp (MH)
2. High Efficiency up to 92%;
3. 3-phase manual dimming option 100%, 75%, 50%;
4. Soft start to allow multiple ballasts to start at the same time;
5. Perfectly work with standard Single-Ended lamps and Double-Ended lamps.
6. Stable quality, 2-years factory warranty
Application
Plant Lighting, Aquarium Lighting, Urban and Architectural Lighting, Industrial Lighting etc.
| Specification | Model | HPS/MH 400W | HPS/MH 600W | HPS/MH 1000W |
| Material | Aluminum | Aluminum | Aluminum | |
| Dimension | 245*112*73 | 316*112*73mm | 391*112*73 | |
| Net Weight | 1240g | 1620g | 2780g | |
| Style | Electronic | Electronic | Electronic | |
| Usage | HID, High Intensity Discharge | HID, High Intensity Discharge | HID, High Intensity Discharge | |
| Matched Bulb | HPS, MH | HPS, MH | HPS, MH | |
| Technical Parameters | Input Voltage | 95~265VAC | 95~265VAC | 95~265VAC |
| Input Current | 2.65A~1.65A | 4.02A~2.50A | 6.56A~4.08A | |
| Input Power | 430W±10 | 650W±10 | 1050W±20 | |
| Input Frequency | 50Hz～60Hz | 50Hz～60Hz | 50Hz～60Hz | |
| Surge Current | ＜40A | ＜40A | ＜40A | |
| Power Factor | ＞0.95 | ＞0.95 | ＞0.95 | |
| THD | ＜10% | ＜10% | ＜10% | |
| Input Insurance | 250V/6.3A | 250V/10A | 250V/20A | |
| Ouput Power | 400W±10 | 600W±10 | 1000W±20 | |
| Lamp Voltage | 120V～250V | 120V～250V | 120V～250V | |
| Output Frequency | 45KHz±20KHz | 45KHz±20KHz | 45KHz±20KHz | |
| Crest Factor | ＜1.7 | ＜1.7 | ＜1.7 | |
| Open Circuit Protection | ＞300V | ＞300V | ＞300V | |
| Ignition [striking] voltage | ＜5KV | ＜5KV | ＜5KV | |
| Short-circuit protection | YES | YES | YES | |
| Open-circuit protection | YES | YES | YES | |
| Ignition failure protection | YES | YES | YES | |
| Thermal protection | YES | YES | YES | |
| Lamp failure protection | YES | YES | YES | |
| Low-voltage protection | YES | YES | YES | |
| Ballast to Lamp distance | <15m | 0 | <15m | |
| Working temperature | -25℃～+50℃ | -25℃～+50℃ | -25℃～+50℃ | |
| Min starting temperature | -25℃ | -25℃ | -25℃ | |
| EMC | EN55015,FCC18C | EN55015,FCC18C | EN55015,FCC18C | |
| Support dimming | YES | YES | YES | |
| Dimming setting | 3-phase manual control | 3-phase manual control | 3-phase manual control | |
| Packaging | Inner Box Size | |||
| Carton Package | 37*25*26.5 cm | 37*25*26.5 cm | 37*25*26.5 cm | |
| Package Qty. | 10 | 5 | 5 | |
| Package G.W. | 12.6KG | 17.8kg | 29.8KG | |
| Package CBM |
