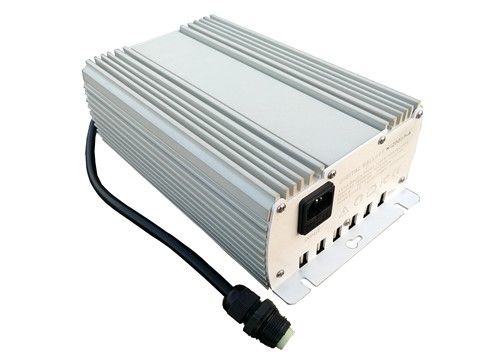

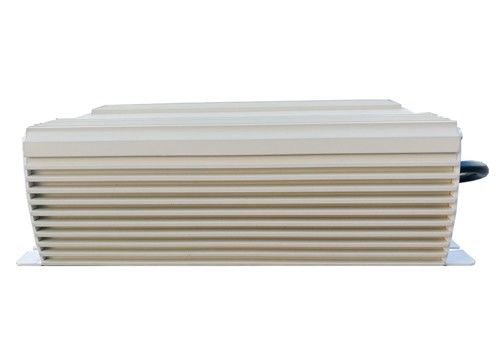

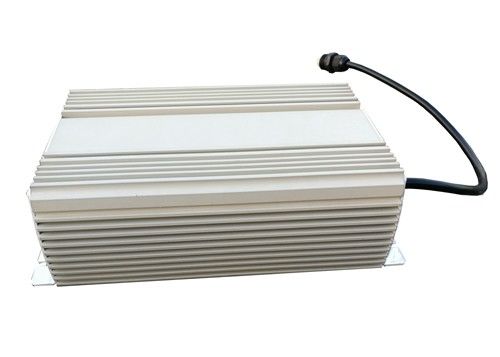

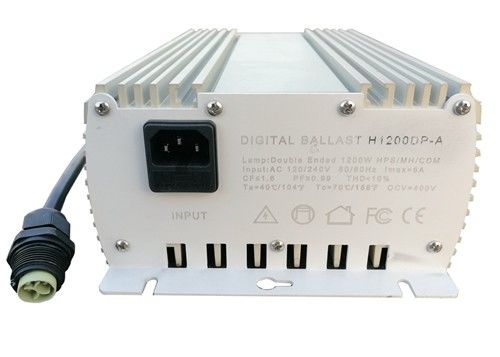

CMH 1200W Digital Electronic Ballast , HPS MH Horticulture Ballast
Product Details:
| Place of Origin: | China |
| Brand Name: | GrowBetter, 1/3, OEM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Inner Box, Export Cartons, OEM |
| Delivery Time: | 5-7 days for S/O, 15-35 days for PO |
| Payment Terms: | 30% deposit, 70% before delivery |
| Supply Ability: | 10000 set per month |
|
Detail Information |
|||
| Material: | Aluminum | Power: | 1200w |
|---|---|---|---|
| Matched Tube: | Hps 1200w, 3x400w | Voltage: | 110v, 220v |
| Usage: | Hid, Hps, Mh, Cmh | Style: | Electronic Low Frequency Ballast |
| Highlight: | 1200W Digital Electronic Ballast,cmh Digital Electronic Ballast,MH Horticulture Ballast |
||
Product Description
Grow Light Ballast 1200w digital electronic ballast for hps mh horticulture lamps
Key Features & Benefits:
1. Strikes major high intensity discharge lamps including HPS, MH, CMD, CDM, LEC, XED etc.
2. Fifty meters long lighting distance from ballast to lamp, convenient for centralized control.
3. Low frequency square wave ballast with soft start, constant power, extend the lamp life, stable and reliable.

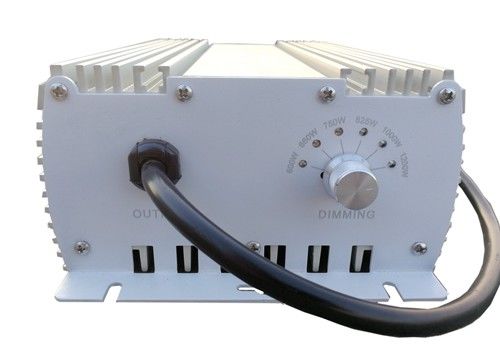

4. Six phase dimmable function
5. Multiple Protection OVP, OTP, SCP, OCP
| Specification | Model | BRI-H1200DP-A |
| Material | Aluminum | |
| Dimension | 398*180*98mm | |
| Net Weight | 3980g | |
| Style | Electronic | |
| Usage | HID, High Intensity Discharge | |
| Matched Bulb | HPS, MH, CMH, CDM, XED | |
| Technical Parameters | Input Voltage | 165~265VAC |
| Input Current | ||
| Input Power | 1250W±20 | |
| Input Frequency | 50Hz～60Hz | |
| Surge Current | ＜40A | |
| Power Factor | ＞0.95 | |
| THD | ＜10% | |
| Input Insurance | 250V/10A | |
| Ouput Power | 1200W±20 | |
| Lamp Voltage | 120V～350V | |
| Output Frequency | 100Hz±10Hz | |
| Crest Factor | ＜1.7 | |
| Open Circuit Protection | ＞300V | |
| Ignition [striking] voltage | ＜5KV | |
| Short-circuit protection | YES | |
| Open-circuit protection | YES | |
| Ignition failure protection | YES | |
| Thermal protection | YES | |
| Lamp failure protection | YES | |
| Low-voltage protection | YES | |
| Ballast to Lamp distance | <50m | |
| Working temperature | -25℃～+50℃ | |
| Min starting temperature | -25℃ | |
| EMC | EN55015,FCC18C | |
| Support dimming | YES | |
| Dimming setting | 6-phase manual control | |
| Packaging | Inner Box Size | 420*245*125mm |
| Carton Package | 84.2*49.2*25.2 cm | |
| Package Qty. | 4 | |
| Package G.W. | ||
| Package CBM |
